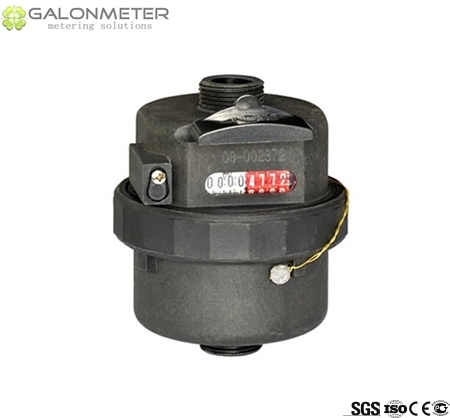

Dimension:
Size
Dn15
Dn20
Dn20
L
115
165
154
L1
209
258
247
D
G3/4B
G1B
G1B
d
R1/2
R3/4
R3/4
W
96
106
106
L1: the total length with connection and the gasket without compression.
Main Technical Data:
Size
mm
Dn15
Dn20
R
Q3/Q1
160
160
Q4
m3/h
3,125
5
Q3
m3/h
2,5
4
Q2
l/h
25
40
Q1
l/h
15,625
25
Max. Reading
m3
9999,9999
Min. Reading
Liter
0,02
Pressure Loss
ΔP
ΔP<63 at Q3
Max. Pressure
MAP
MAP16
Max. Temperate
℃
T30 or T50
(For different Q3 and R, please contact with GALONMETER manufacture).

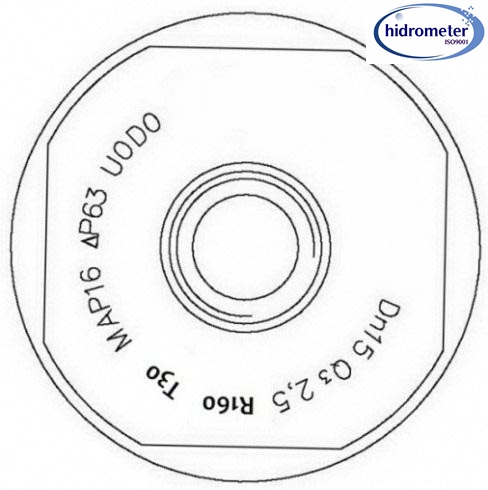

Dial Plate:
Max. Permission Error (for T30):

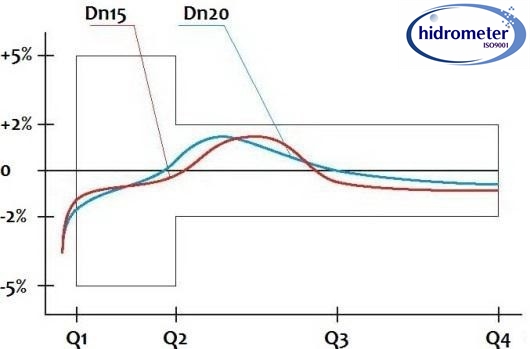

From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2%;
OPTION VISION of PD-SDC (S):
Pulse output pre-equipped AS OPTION

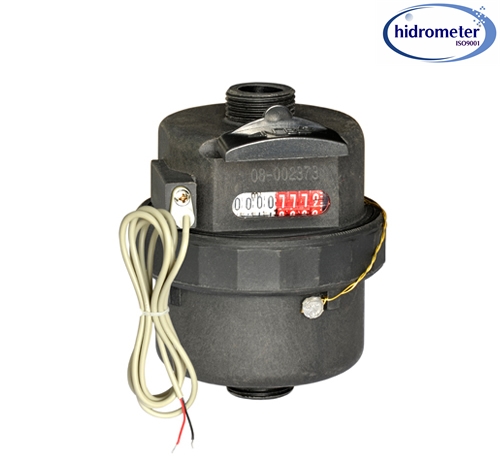

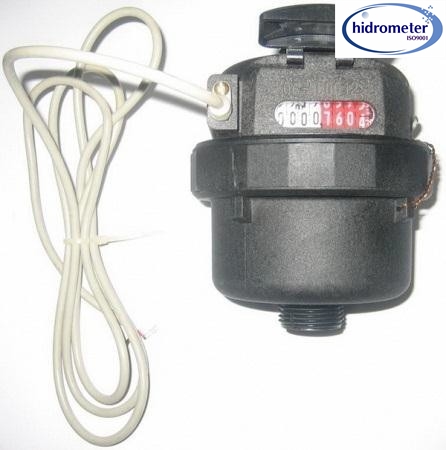

1. The Pulse output Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
2. Electric Data: Vmax=24AC/DC, Imax=0,01A
3. Capacity of the Pulse output or Pulse output pre-equipped:Size
Dn15-Dn20-Dn25-Dn32-Dn40
1Pulse output Capacity
1 liter / 2pulses
