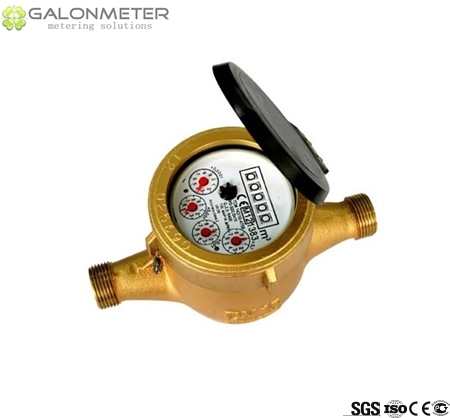

Volumetric dry type plastic cover with remote cable

GALONMETER GL-VM-D is Piston Displacement (Volumetric) water meter with dry type register at sizes Dn15, Dn20, Dn25 designed by GALONMETER and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154.

Characteristics:

1. All the components ate produced with high resistance and quality materials, technical plastics and stainless steel parts;

2. Cold water meter under current standard for lower than 30℃(T30), but GALONMETER GL-VM-D can be used safely in water temperature up to 50℃(T50);

3. The indicator register is of 5 rollers and 4 pointers;

4. The Piston is the only moving parts in contact with water permitting the most reliable;

5. Suitable for any position installation;

6. The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;

7. The conception of the Magnetic Protection to against the external influences;

8. Non Return Valve to avoid the reserve flow Rate AS OPTION;

9. The indicator register is of 8 Rollers and 1 Pointer AS OPTION;

10. Copper can super dry type register with IP68 protection AS OPTION;

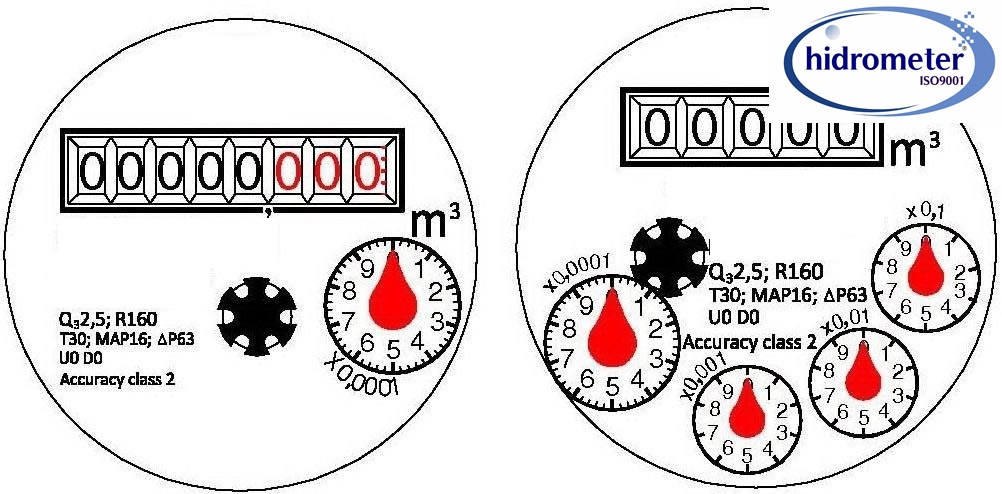

Dial Plate Design:

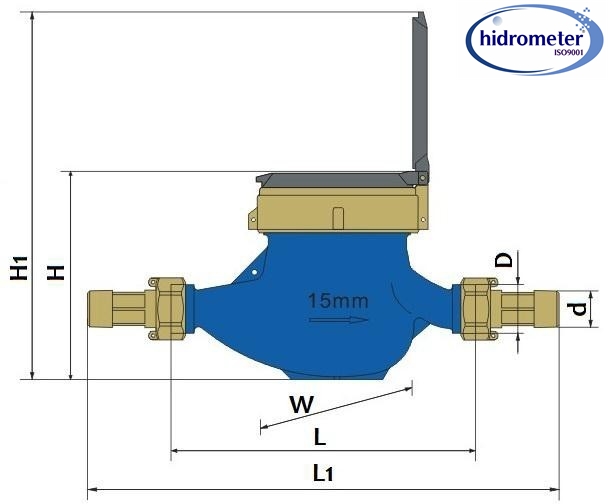

Dimension:

L1: the total length with connection and the gasket without compression.

Main Technical Data:

(For different Q3 and R, please contact with GALONMETER manufacture)

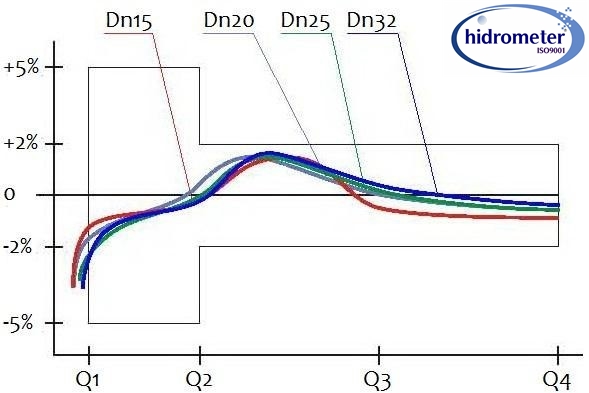

Max. Permission Error (for T30):
From Q1 inclusive up to but excluding Q2 is ± 5%;

From Q2 inclusive up to and including Q4 is ± 2%;
