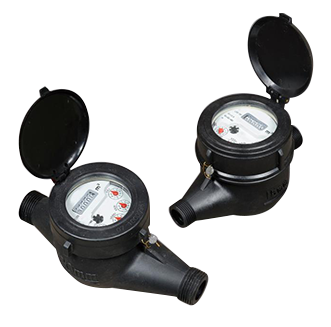

v APPLICATION

l Recording the total amount of cold water flowing through the water pipe.

v FEATURES

l This meter is designed for environmental protection, such as wading case, take-over manufactured by environmentally friendly engineering plastic or stainless steel. The meter core, performance and link size is equivalent to other metal shell water meter, which can be configured with a variety of counters, high sensitivity movement and remote structure.

l The plastic shell and the pressure parts adopt the glass fiber reinforced nylon (PA66+35%GF) with higher mechanical strength, which is in line with the national standard <<Technical Specification for the Plastic Shell and Pressure Parts of Drinking Water Cooling Water Meter>> (Our company is the main drafting unit).

l Material health: passing the national drinking water health identification;

l Weather resistance: passing 2000 hours of ultraviolet aging test (equivalent to outdoor sun exposure on the Qinghai Tibet Plateau for 6 years) and the temperature test of high temperature 85 degrees Celsius to low temperature -25 degrees Celsius;

l Design Optimization: according to the characteristics of engineering plastic structure optimization, the initial static pressure test strength is 5MPa. There are semi aromatic nylon molded watch-case and cover with more high-grade.
