GL-SJ-13~40

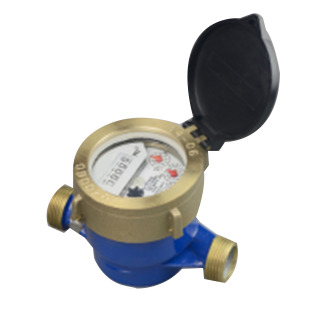

Single Jet Vane Wheel Water Meter


v MAIN TECHNICAL PARAMETERS

         Temperature level: T30

         Pressure level: MAP10

         Pressure loss level:   P63

         Upstream flow sensitivity level: U0

  Downstream flow sensitivity level: D0



v MAXIMUM PERMISSIBLE ERROR

   A) Low area (Q1 ≤ Q < Q2) maximum permissible error is ±5%.

   B) High area (Q2  Q < Q4) maximum permissible error is ±2%.


v APPLICATION

    Recording the total amount of cold water flowing through the water pipe.



v FEATURES

 GL-SJ series of water meter has the advantages of small size and light weight. Between counting mechanism and measurement mechanism is magnetic transmission; the counter can freely rotate in 360 degrees, which is convenient for reading. The water meter has anti-magnetic effect, so it can maintain clear at long-term.



v REMARKS

The technical parameters of the water meter are in accordance with the national standard GB/T 778.1~3-2007 (ISO4064-1~3:2005, IDT).

l Different lengths of this water meters series are optional according to customers requirements.

This series of water meter has hot water meter GL-SJ-R 13~40 for customer selection.
