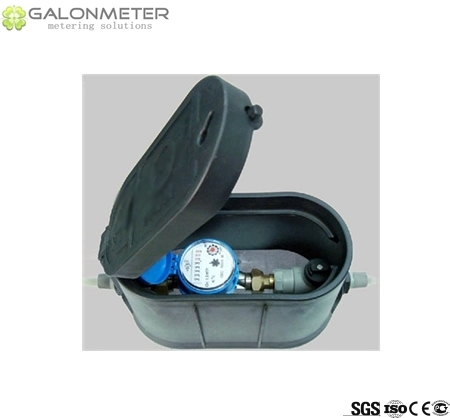

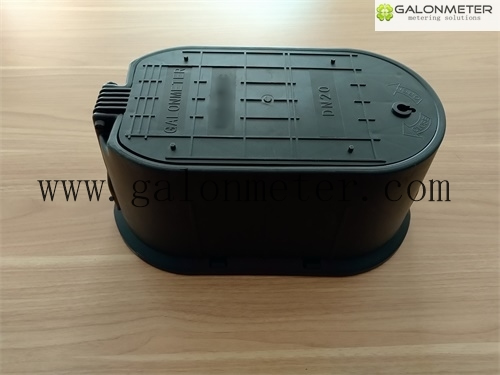

GALONMETER METER BOX-PLASTIC is designed by GALONMETER company to protected the water meter from unauthorized access and damage.

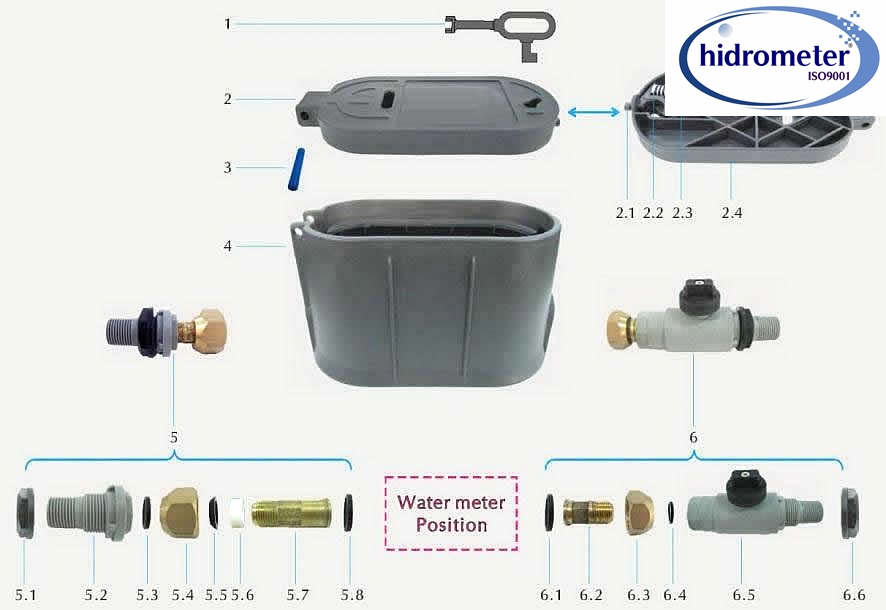

ITEM NO
DESCRIPTION
1
KEY
2
LID of the METER BOX with LOCK SYSTEM
3
HINGLE PIN
4
METER BOX
5
OUTPUT NIPPLE
6
INLET NIPPLE with BALL VALVE
Characteristics:
All the Materials consciously selected by the known resistance to corrosion, and strongest material for longer term life;
All the parts is easy to dismantle and re-installed, the most convenient replacement for the water meter inside;
Special locking mechanism , requiring a tailor-made key to open the lid;

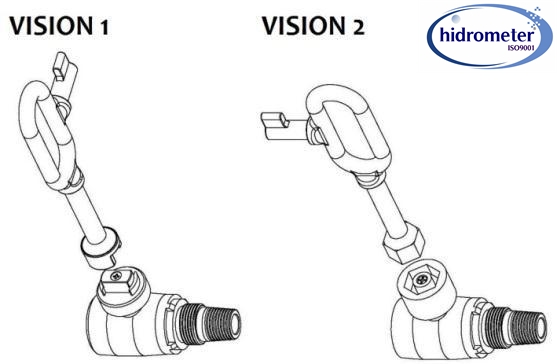

High Quality ball shut off valves without rising headparts which can cause leaks;
Suitable for use in heavy traffic situations;

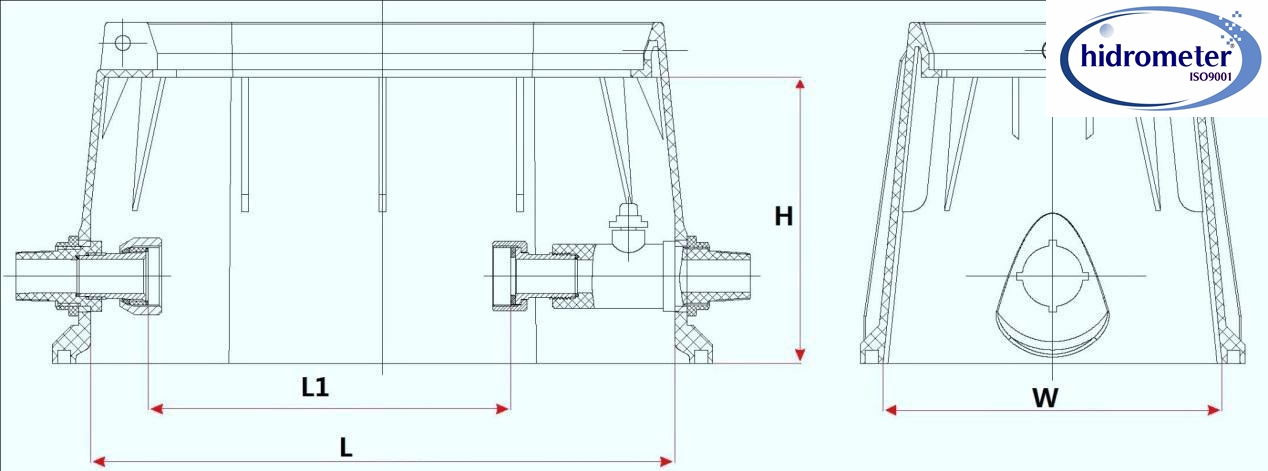

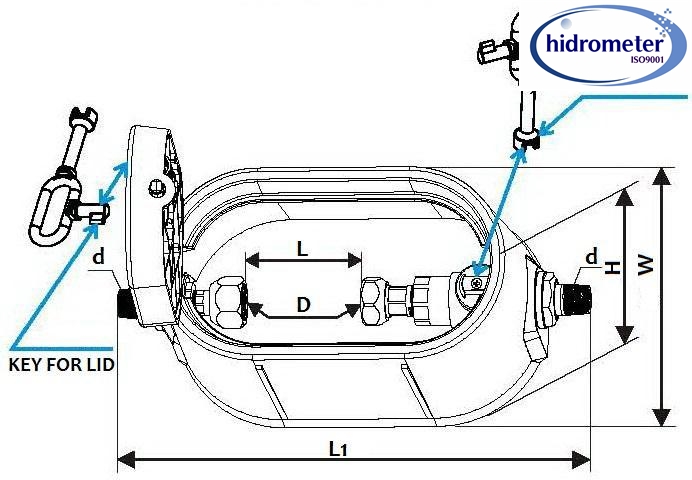

Dimension:
Size
Dn15
Dn20
Dn25
Dn40
Dn15
Dn20
Item
MBP-SJ15
MBP-SJ20
MBP-SJ25
MBP-SJ40
MBP-MJ15
MBP-MJ20
L1
340
342
454
475
386
388
D
G3/4B
G1B
G1-1/4B
G2B
G3/4B
G1B
d
R1/2
R3/4
R1
R1-1/2
R1/2
R3/4
H
156
156
166
166
187
187
W
151.5
151.5
206
206
203
203
“L1” is the total length when nipples gaskets without compression.
Max. Inner Dimension:
Size
Dn15
Dn20
Dn25
Dn40
Dn15
Dn20
Item
MBP-SJ15
MBP-SJ20
MBP-SJ25
MBP-SJ40
MBP-MJ15
MBP-MJ20
L1
110/115
130
160
200
165 to 190
190
Suitable for WM
SJ and PD-LFC
SJ
MJ and PD-SDC
L
260
360
308
H
126
136
151
W
135
186
178
emark: all the Dimensions are only for reference!
Installation:
The water meter and the nipples should be installed with the direction of the flow as indicate by the arrow cast or injection on the parts, please check the detail form the Installation Instruction.
-
