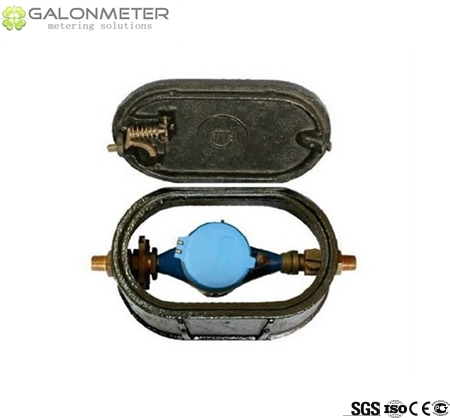

GALONMETER GL-BOX -IRON isdesigned by GALONMETER company to protected the water meter from unauthorized access and damage.

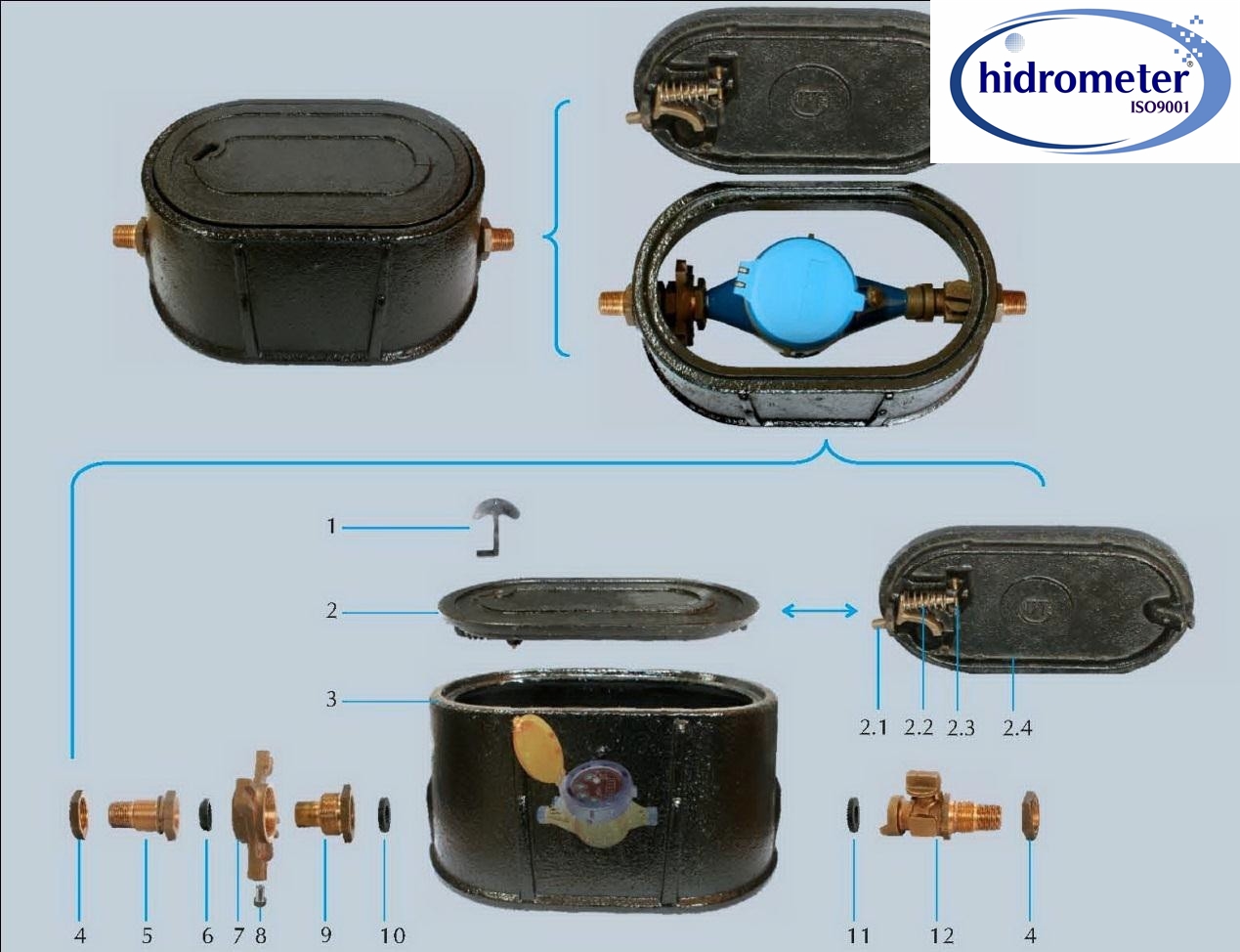

ITEM NO
DESCRIPTION
1
KEY
2
LID of the METER BOX with LOCK SYSTEM
3
METER BOX
4+5+6
OUTPUT NIPPLE
7+8+9+10
EXPANSION JOINT
11+12+4
INLET NIPPLE with BALL VALVE
Characteristics:
1, All the Materials consciously selected by the known resistance to corrosion, and strongest material for longer term life;
2, All the parts is easy to dismantle and re-installed, the most convenient replacement for the water meter inside;
3, Special locking mechanism , requiring a tailor-made key to open the lid;
4, Expansion joint with the function to calibrate the length;
5, High Quality ball shut off valves without rising headparts which can cause leaks;
6, Suitable for use in heavy traffic situations;

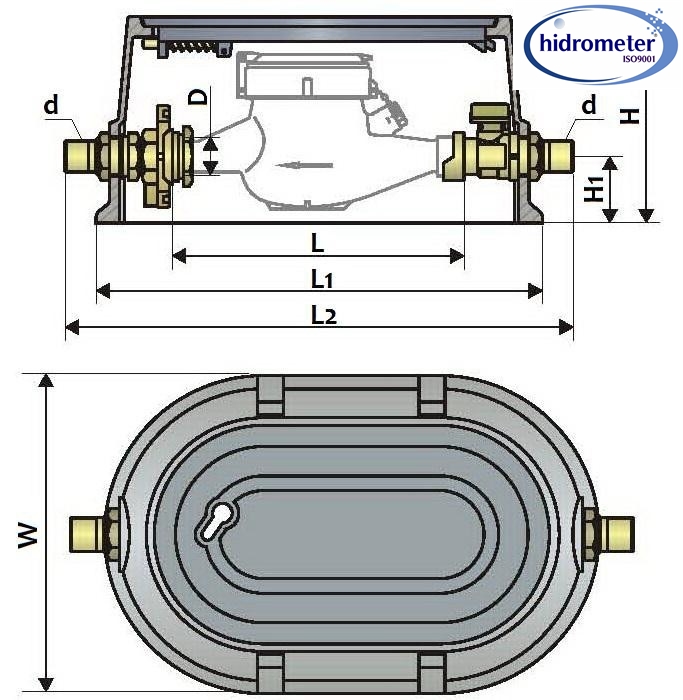

Dimension:
Size
Dn15
Item
MBI-MJ15
L1
302
L2
345
D
G3/4B
d
R1/2
H1
45
H
138
W
195
“L2” is the total length with the gaskets without compression.

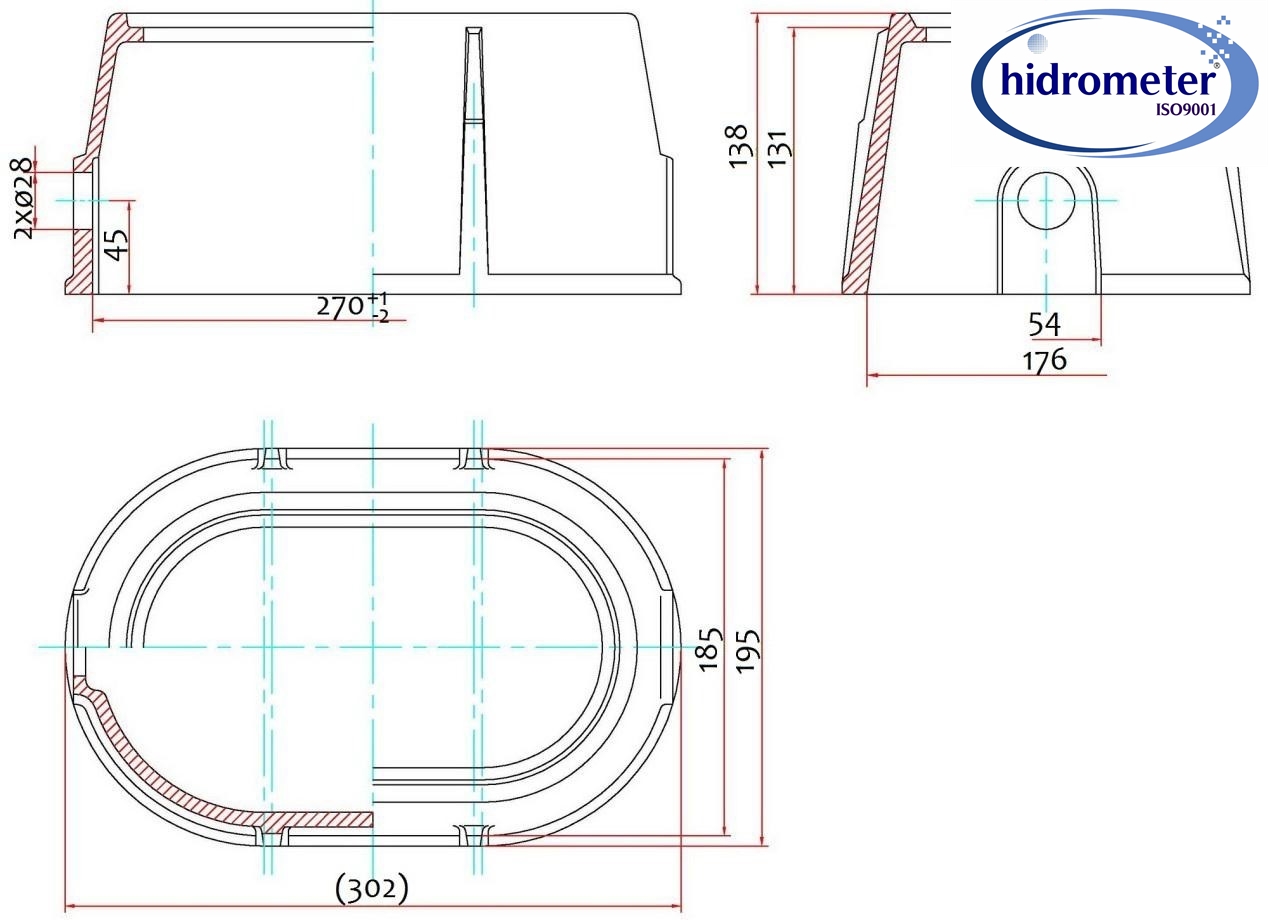

Detail Dimension for Meter Box:
Remark: all the Dimensions are only for reference!
Installation:
The water meter and the nipples should be installed with the direction of the flow as indicate by the arrow cast or injection on the parts, please check the detail form the Installation Instruction.
