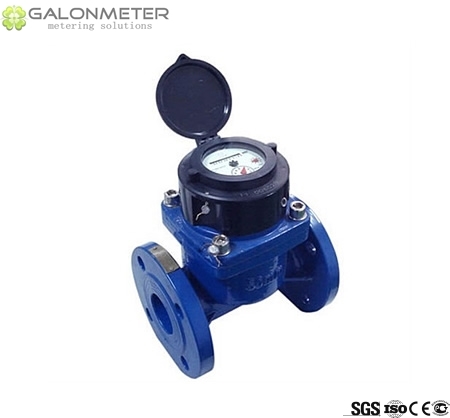

Woltman irrigation water meter

GALONMETER GL-WI is TURBINE water meter with magnetic transmission, super dry type register for Irrigation and Agriculture application with sizes from Dn50 to Dn300 designed by GALONMETER and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154.

Characteristics:
1. All the materials in contact with water, consciously selected by the known resistance to corrosion;
2. Iron body with inside and outside epoxy coating for protecting the corrosion;
3. The ROTATING indicator register for the most comfortable reading position;
4. The copper can super dry register with IP68 protection;
5. he interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
6. Paddle wheel design resists blockage and damage to meter from solids in water;
7. Magnetic transmission, Low pressure loss;
8. Suitable for irrigation, agriculture and waste water application ;


PULSE OUTPUT ALWAYS READY, AND PULSE OUTPUT AS OPTION, DETIAL AS:
1. The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
2. Electric Data: Vmax=24AC/DC; Imax=0,01A

3.Capacity of the Pulse Emitter:

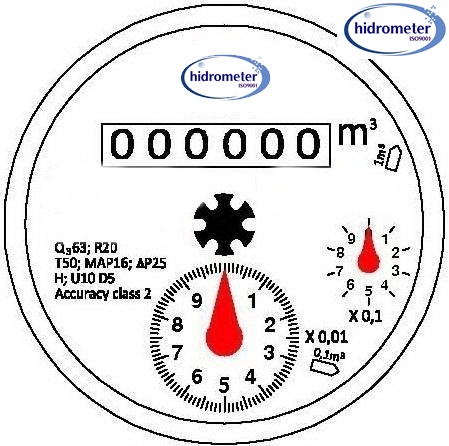

Dial Plate Design:

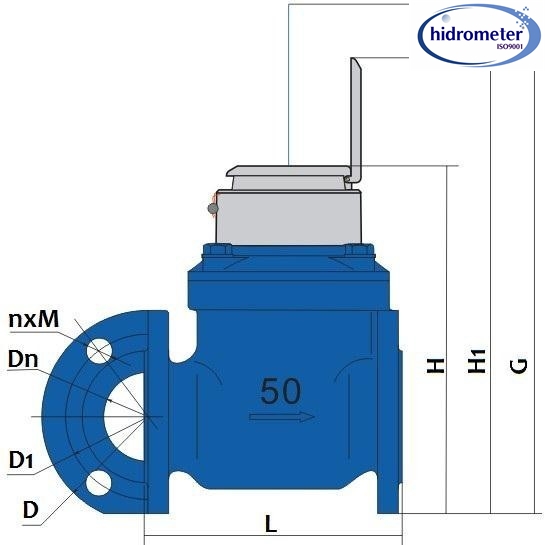

Dimension:

The Flange Standard under ISO 7005-2:1998(E) PN16 as:

Different Flange Standard for selecting such as: ISO 7005-2: 1998(E) PN10, ASME B16.1-Class 125 working for B16.5-Class 150…

Main Technical Data:

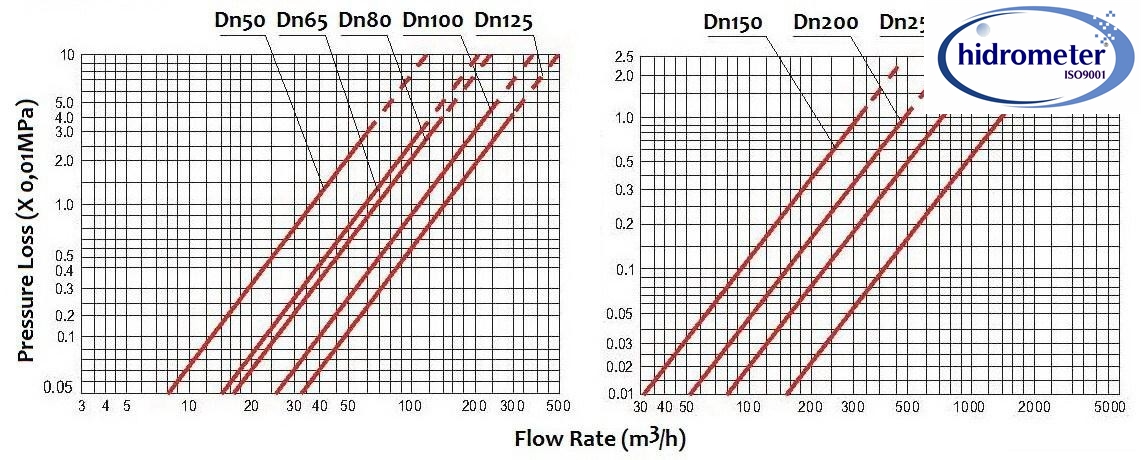

Pressure Loss Curve:

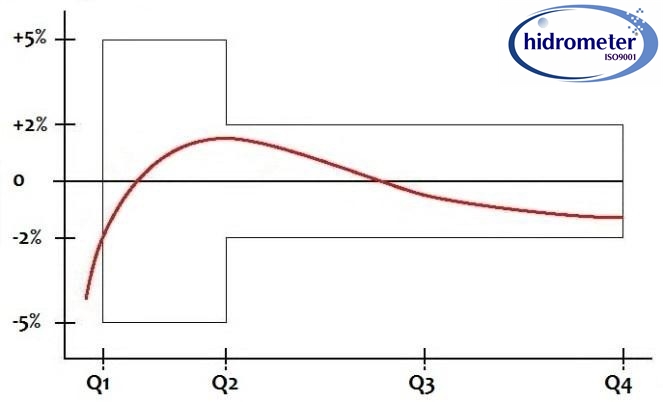

Max. Permission Error:
From Q1 inclusive up to but excluding Q2 is±5%;
From Q2 inclusive up to and including Q4 is±2% for T30 and±3% for T50.
