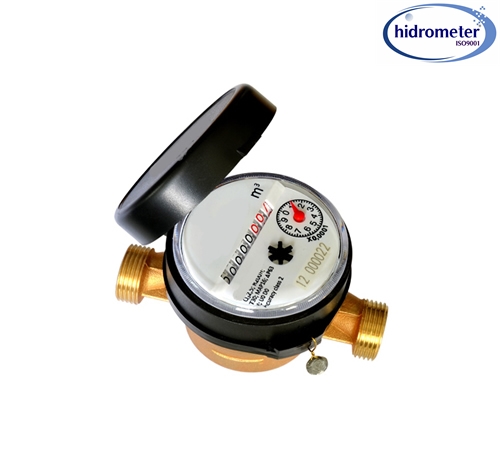

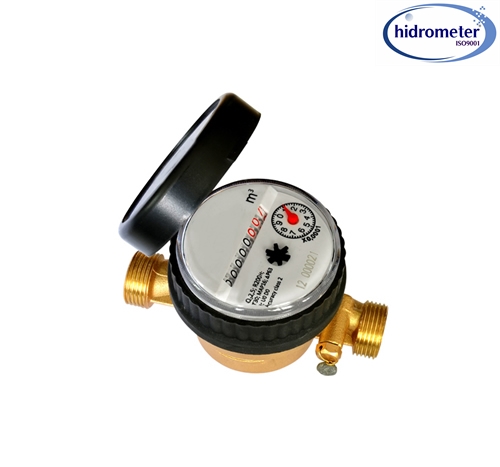

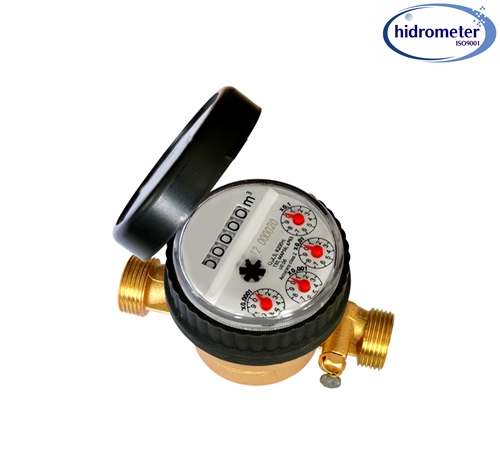

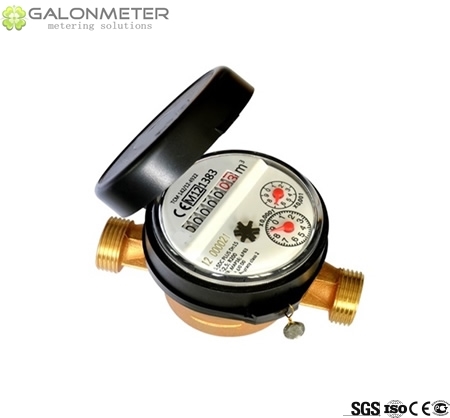

Single jet super dry high sensitivity water meter

GALONMETER GL-SJ-SD is IMPELLER (turbine), single jet water meter with dry type register for residential application with sizes from Dn15 to Dn25.

Characteristics:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30℃(T30), but GALONMETER GL-SJ-SD can be used safely in water temperature up to 50℃(T50);
Rotary indicator register with 7 Rollers and 2 Pointers for easy reading;

The Impeller is the only moving parts in contact with water permitting the most reliable;
The conception of the Magnetic Protection to against the external influences;
No need for external adjustment due to its design and high technology in manufacturing;
High Accuracy for Horizontal installation;
With Pre-equipped for communication device as Option.

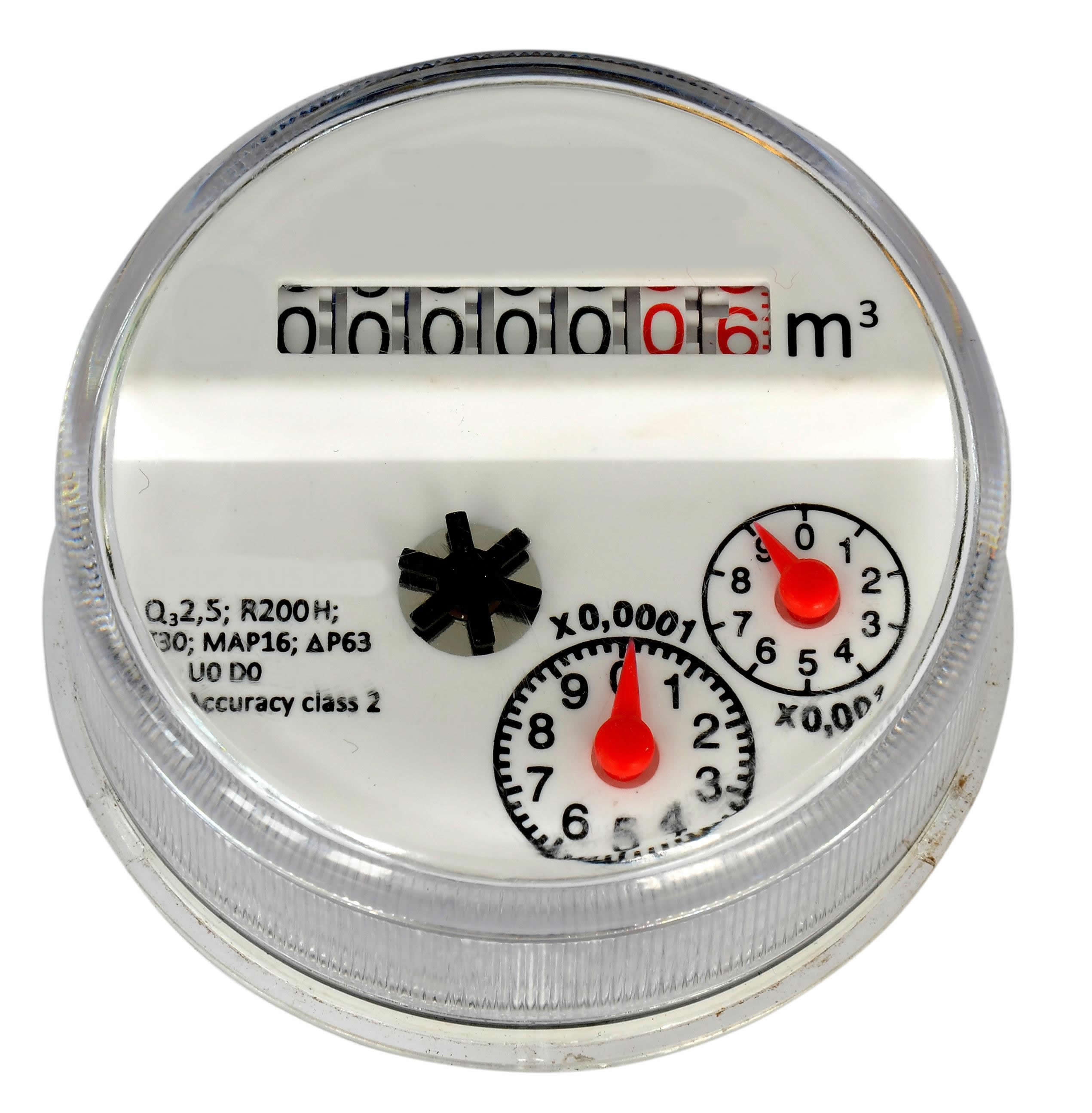

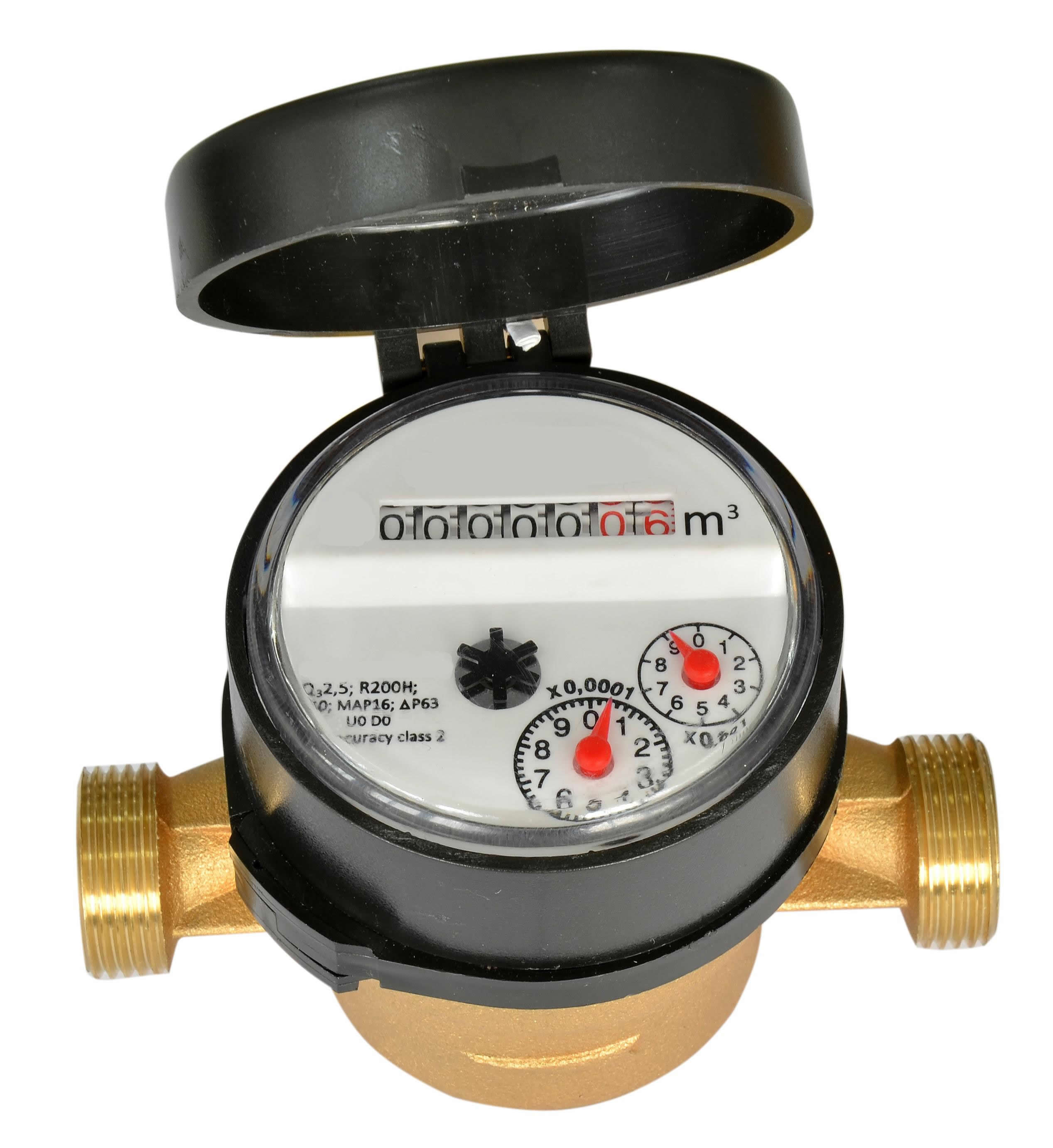

Dial Plate Design:

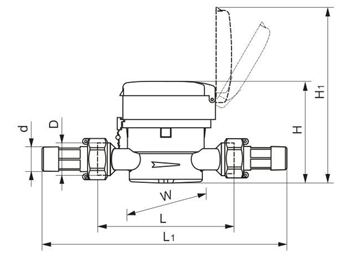

Dimension:

L1: the total length with connection and the gasket without compression.

Main Technical Data:
Under En 14154:2005+A1+A2, OIML R49: 2006(E), ISO 4064: 2005(E)

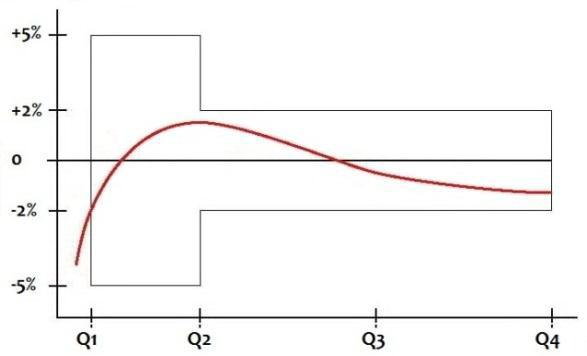

Max. Permission Error:
From Q1 inclusive up to but excluding Q2 is ± 5%; From Q2 inclusive up to and including Q4 is ± 2%;

SJ-SDC PLUS also meets to the International Standard: ISO 4064:1993 Standard, main technical data as:

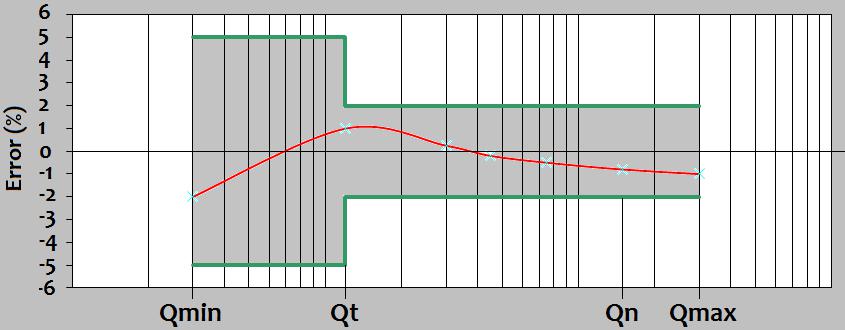

MAX. PERMISSION ERROR:
From Qmin inclusive up to but excluding Qt is ± 5%; From Qt inclusive up to and including Qmax is ± 2%;

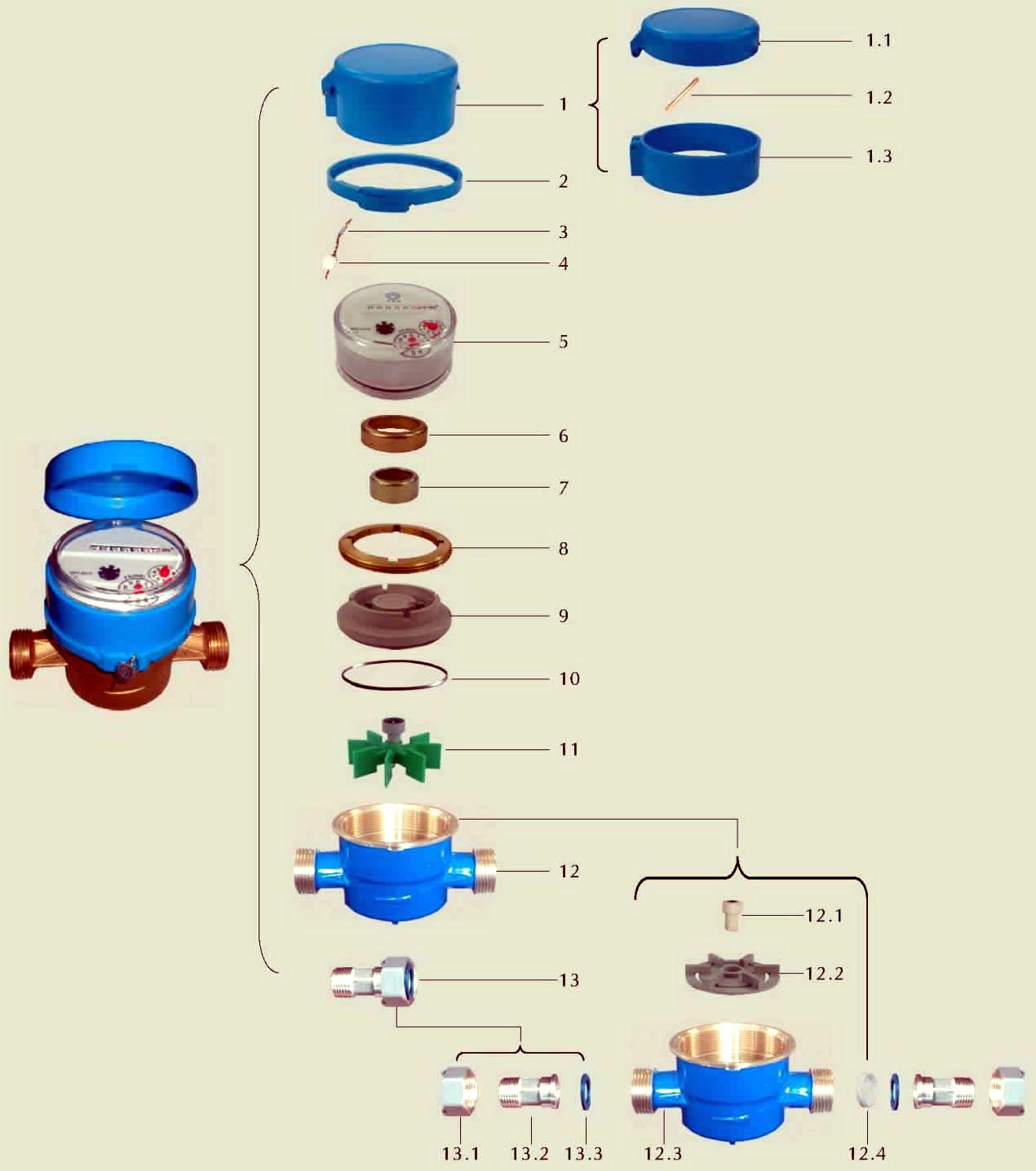

Exploded Drawing:
