Single jet liquid sealed Class C R160 water meter

GALONMETER GL-SJ-I3 13-40 is IMPELLER (turbine) water meter with dry type register for residential application with sizes from Dn15 to Dn40 designed by GALONMETER and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154 and International Organization of Legal Metrology OIML R49.

Characteristics:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30℃(T30), but GALONMETER
GL-SJ-I3 13-40 can be used safely in water temperature up to 50℃(T50);
The ROTARY indicator register for the most comfortable reading position is of 8 Rollers and 1 Pointer;
The Impeller is the only moving parts in contact with water permitting the most reliable;
The conception of the Magnetic Protection to against the external influences;
The ROTARY indicator register for the most comfortable reading position is of 5 rollers and 4 pointers AS OPTION;
Outside calibration Device AS OPTION;
Pulse output pre-equipped AS OPTION, also Pulse output AS OPTION.

Pulse:

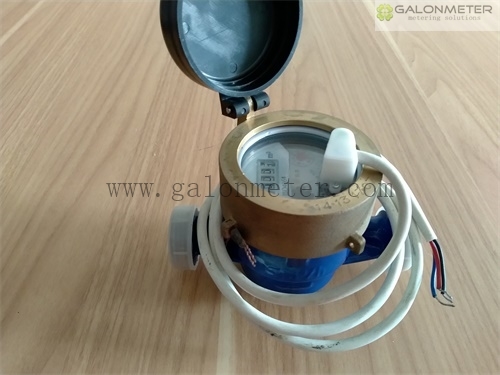

The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
Electric Data: Vmax=24AC/DC, Imax=0,01A

Capacity of the Pulse output or Pulse output pre-equipped:

Dimension:

L1: the total length with connection and the gasket without compression.

Main Technical Data:

Max. Permission Error (for T30):

From Q1 inclusive up to but excluding Q2 is ± 5%; From Q2 inclusive up to and including Q4 is ± 2%;
