Function & Application

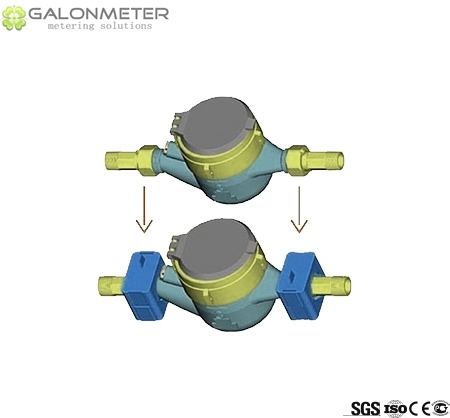

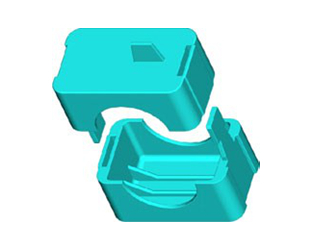

1.Nut protecting cap include two parts upper part and lower part , lock them on the nut to let nut inside the cavity of protection cap.
2.Simple structure, easy installation.
3.Nut protecting cap can effectively protect the inlet and out let connecting screw of water meter body.
4.Nut protecting cap roles similar as the water meter seal , to open the water meter must first destroy it.
5.Words on the Protecting Cap can accord to Customer's requirement.Dimension Picture
Technical Characteristics
Nom ina l diam eter
Parame ter diame ter
Part NO.
DN
L
W
H
H1
15
50.5
30
34.5
22.5
ZN8.210.239
20
63
35
37.5
27.5
ZN8.210.266
25
72
38
41
31
ZN8.210.240
32
78
42
47.5
37.5
ZN8.210.241
40
85
43
50.5
40.5
ZN8.210.267

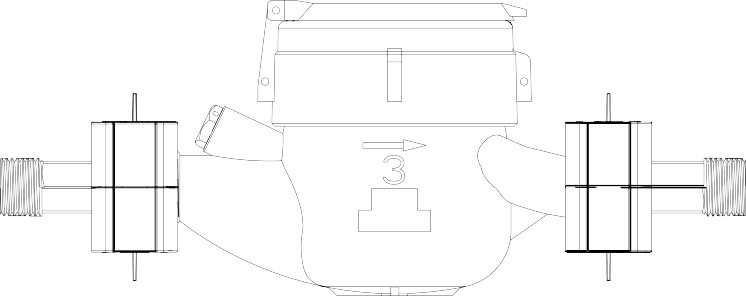

Front View
Left View

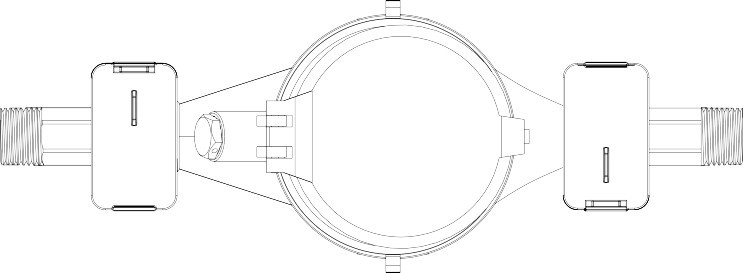

Top View
