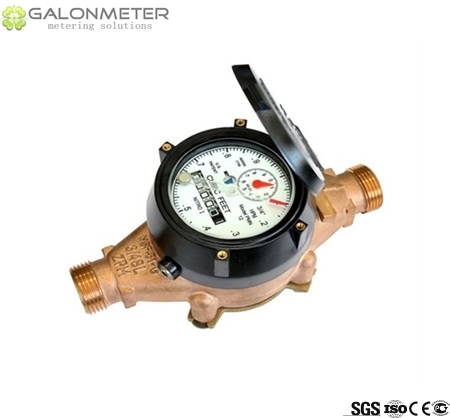

GALONMETER GL-MJ-AWWA is magnetically driven multi jet (Velocity) water meter with Super Dry Type Register from size 5/8X1/2” to 2” designed by GALONMETER and meets to AWWA C708.
OPERATION:
Water flows through the meter’s strainer and into the measuring chamber where it drives the impeller. A driving magnet transmits the movement of the impeller to a driven magnet located within the hermetically sealed register. The magnet is connected to a gear train which translates the impeller rotates into volume totalizators displayed on the register dial face.
CONSTRUCTION:
GALONMETER PMN bottom loaded Water Meter consists of three basic components: main case, measuring chamber and a sealed register. The main cases of all sizes are constructed using Brass Alloy or Bronze Alloy or Lead free Brass Alloy. Measuring Chambers are constructed of a durable synthetic polymer. Bottom plates are Brass Alloy. Registers are available as either direct read or electronic output with Plastic Register Cover and plastic Register Shroud, Brass Register Cover and brass Register Shroud AS OPTION.Dimension and Dial Plate Design for USG (CF and m3 AS OPTION):
Size
5/8*1/2”
5/8*3/4”
3/4” Short
3/4*3/4”
3/4*1”
1”
1-1/2”
2”
1-1/2”
2”
L
7-1/2”
7-1/2”
7-1/2”
9”
9”
10-3/4”
12-5/8”
15-1/4”
13”
17”
D
3/4”
1”
1”
1”
1-1/4”
1-1/4”
Female thread
Flange
Flange
W
3-13/16”
4-3/8”
5-3/4”
6”
H
4-3/4”
5
7”
Size
inch
5/8*1/2”
3/4” Short
1”
1-1/2”
2”
5/8X3/4”
3/4X3/4”
X
X
X
X
3/4X1”
X
X
X
High Flow Rate
USGPM
20
30
50
100
160
Continuous Flow Rate
USGPM
10
15
25
50
80
Low Flow Rate
USGPM
1/4
1/2
3/4
1-1/2
2
Normal Flow Rate Range
USGPM
1-20
2-30
3-50
5-100
8-160
Max. Working Pressure
PSI
150
150
150
150
150
Max. Temperature
Deg. F
122
122
122
122
122
Max. reading
USG
9999999.99
999999999.9
Min. reading
USG
0.01
0.1
Max. reading
CF
999999.999
99999999.99
Min. reading
CF
0.001
0.01
Max. reading
m3
99999.9999
999999.999
Min. reading
m3
0.0001
0.001
Max. Permission Error:
Normal Flow Limits: Within the normal flow rate range, the meter shall register not less than 98.5% and not more than 101.5% of the water actually passed through the meter;
Low Flow Limits: the meter shall register not less than 97% and not more than 103% of the water actually passed through the meter.
