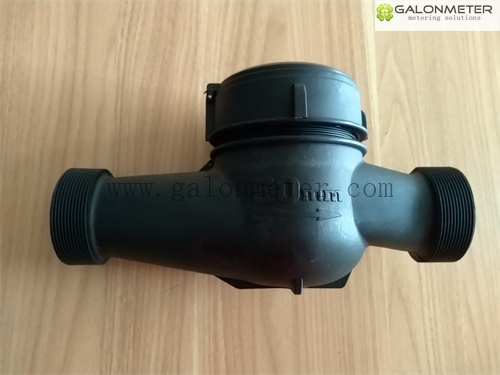

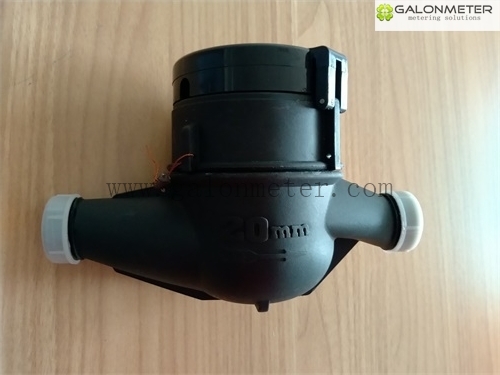

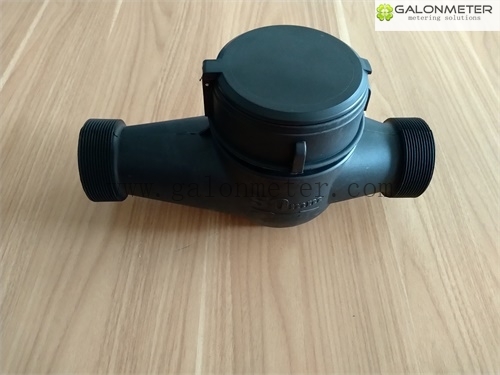

Multi jet nylon plastic water meter

GALONMETER GL-MJ-NP 15-50 is IMPELLER (turbine) water meter with magnetic transmission, dry type register has the sizes from Dn15 to Dn50 designed and manufacture by GALONMETER and meets to the requirements of Directive 2004/22/EC on measuring instruments; the European Standard EN14154+A1+A2: Water Meter; the International Organization of Legal Metrology OIML R-49: 2006(E): Water meters intended for the metering of cold potable water and hot water.
---------

CHARACTERISTICS:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30℃(T30), but GALONMETER GL-MJ-Z 15-50 can
be used safely in water temperature up to 50℃(T50);

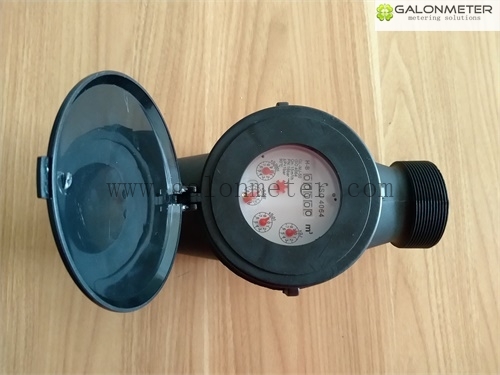

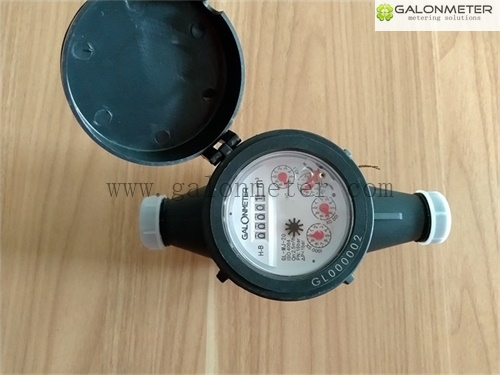

The ROTARY indicator register for the most comfortable reading position of 5 black Rollers, 3 red Rollers and 1 pointer for Dn15 to Dn32 and 6 black Rollers, 2 red Rollers and 2 pointers for Dn40 and Dn50;
The Impeller is the only moving parts in contact with water permitting the most reliable;
The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
The conception of the Magnetic Protection to against the external influences;
Non Return Valve to avoid the reserve flow Rate AS OPTION; DIAL PLATE DESIGN:

DIMENSION:

L1: the total length with connection and the gasket without compression.

Main Technical Data:

Max. Permission Error:
From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50;

OPTION VISION of MJ-SDC Z:
5 BLACKS ROLLERS, 4 RED INDICATOR POINTERS for Dn15 to Dn32 and 6 BLACKS ROLLERS, 4RED INDICATOR POINTERS VISION;
