Compound &Combination Water Meter

OPERATION:

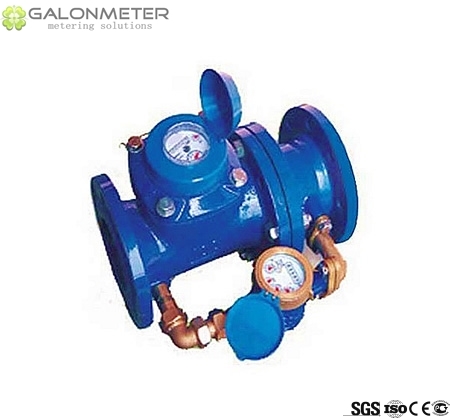

GALONMETER GL-WCB-50-200 Compound (Combination) Meters utilize a turbine type meter on the main flow line and a proportionately sized meter on the low flow bypass line. A change over valve controls the flow of water through the appropriate measuring device. Before the valve opens, all water flows through the low flow meter. As pressure rises the valve opens, allowing water to flow through both meters. Movement of the measuring elements is transmitted to drive magnets, which transmit the motion to driven magnets located within hermetically sealed registers. The magnets are connected to gear trains, which translate the rotations into volume totalizators displayed on the register dial faces.

CONSTRUCTION:
GALONMETER GL-WCB-50-200 Compound (Combination) Meters consist of a main case, turbine measuring element, changeover valve housing, main case cover, multi-jet type meter, and magnetically driven register assemblies.

GALONMETER GL-WCB-50-200Compound (Combination) Meters with magnetic transmission, dry type register for Commercial and Industrial application has the sizes from Dn50 to Dn200 designed by GALONMETER and meets to the international standard of ISO 4064 Standard.

CHARACTERISTICS:
All the materials in contact with water, consciously selected by the known resistance to corrosion;
Iron body with inside and outside epoxy coating for protecting the corrosion;
The  ROTATING  indicator  register  of  the  main  meter  for  the  most  comfortable  reading position;
The copper can super dry register of the main meter with IP68 protection;
The interchangeable, removable measuring mechanism of the main meter can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
Lower Pressure loss;
No effected by external magnetic fields;
Pulse output AS OPTION.

The height “G” is the min. height for removing the measuring mechanism. The Flange Standard under ISO

*Different Flange Standard for selecting such as: ISO 7005-2: 1998(E) PN10, ASME B16.1-Class 125 working for B16.5-Class 150…

PRESSURE LOSS CURVE:

Max. Permission Error:
From Qmin inclusive up to but excluding Qt is ± 5%; From Qt inclusive up to and including Qmax is ± 2%;
